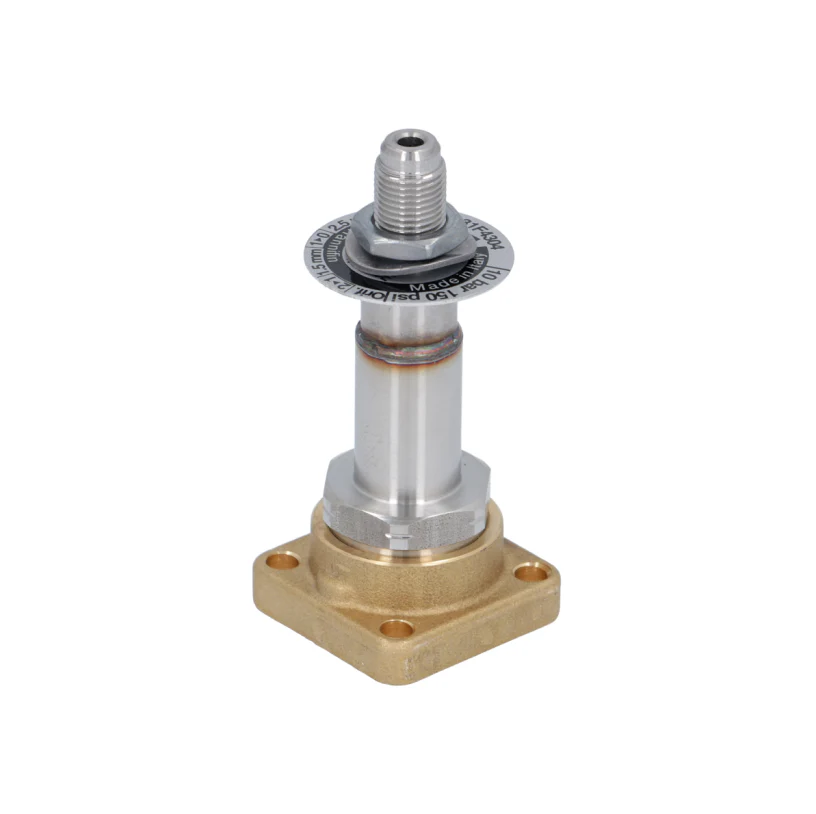

Three-way Lucifer Solenoid Valve Guide
Includes nucleus, base, nucleus and the two flange o-rings, F_252. These will only fit with the Lucifer brand coils.
Confused/unsure? Check out the solenoid valve breakdown
Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.
Cross-references:
| Part number | Manufacturer |
| C..166 | ASCASO |
| 7703001 | BEZZERA |
| 1120334 | LF |
| 700176 | NUOVA RICAMBI |
| 471017 | PARKER |
| 450001 | PAVONI |
| 451261 | PAVONI |
| AS116 | GRIMAC |
| 00626 | SPAZIALE |
Technical Specifications
- Maximum Operating Pressure: 10 bar AC - DC
- Valve Type: 3/2 Way
- Orifice Size: 1, 5 mm
- Seal Material: Ruby
- Function: Normally Closed
- Actuation Type: Direct Acting
- Port Size: 32 x 32 mm
- Port Type: Sub-base (flanged)
- Body Material: CW510L UNI EN 12165
- Media: Air, Water, Steam
- Seat Material: Stainless Steel
- Exhaust Orifice Size: 1,5 mm
- Flow Coefficient 1: 2,6 L/min
- Flow Coefficient 2: 0,16 m3/hour
- Minimum Operating Pressure: 0 bar
- Minimum Fluid Temperature: -10 °C
- Maximum Fluid Temperature: 140 °C
- Specifications Met: NSF169 - 1935/2004/CE
