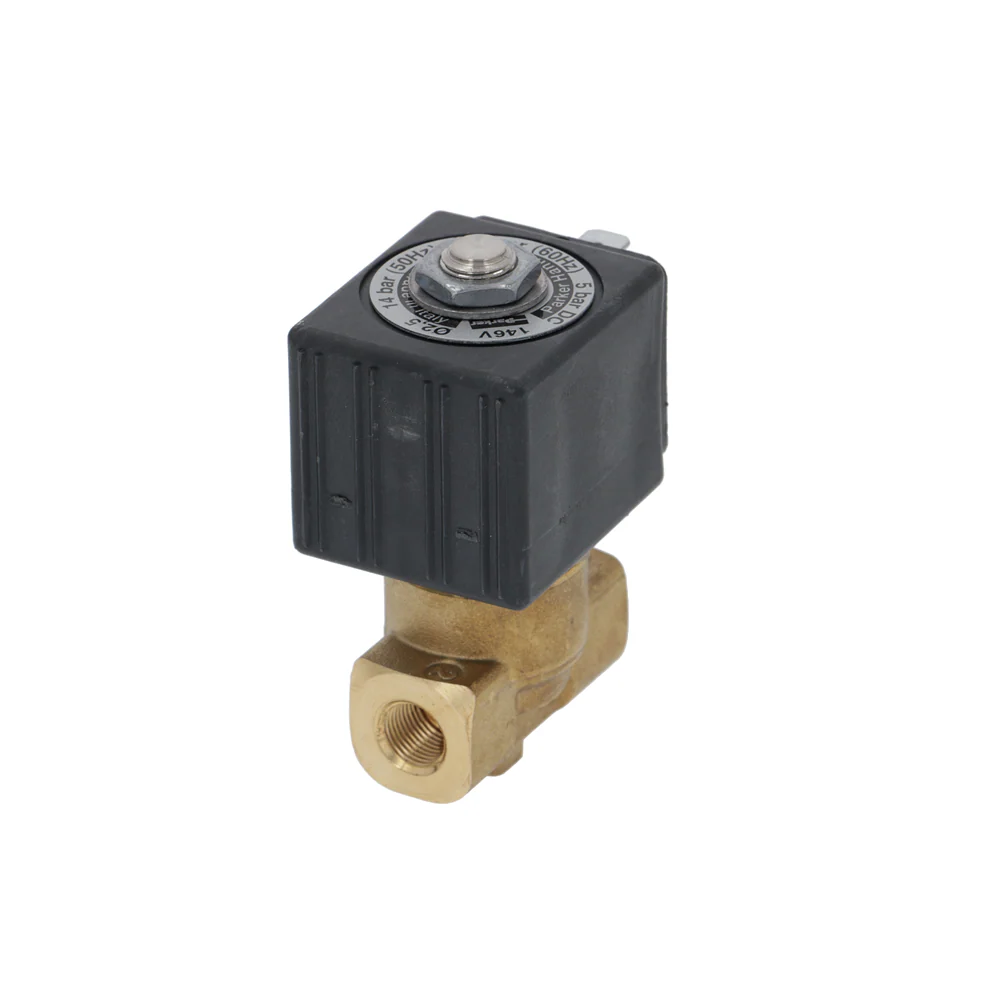

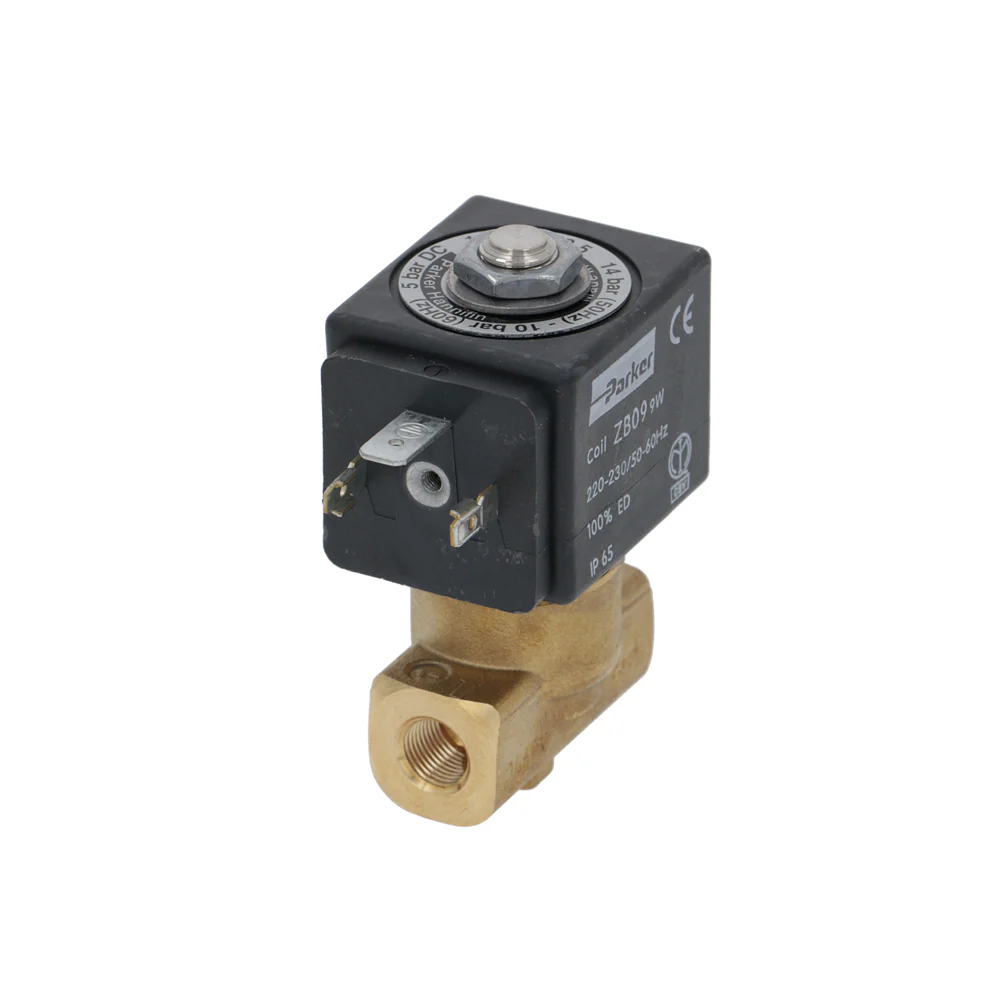

220V 50/60Hz 9W 1/8" x 1/8" Two-way Parker Solenoid
Uses W_635 connector. The coil, ZB09, measures 32.5mm tall (1-1/4") x 33.5mm wide (1-5/16") x 42mm long (1-11/16"). This is the "large" body version.
NOTE: Check the water flow direction indicated by an arrow on the valve body prior to installation.
- VE146FV - fitting ø 1/8"FF - max 10 bar
- VITON seal - orifice ø 2.5 mm
- with coil ZB09 9W 220/230V 50/60Hz
- fluid temperature -10°C+140°C
Espresso Parts Guarantee:
We guarantee a full refund or replacement of all defective products at no additional cost to you. Most electrical items have specified limited warranties. If an electrical device fails to function due to manufacturers defect, Espresso Parts will repair or replace the device (TBD).*Important Note: All Special Order Items, Equipment, Electrical Items (scales, heating elements, switches, flowmeters, vibratory pumps, thermostats, etc.), Pump Heads, Solenoids, Custom Work and Books are NOT eligible for return. All sales are final on this merchandise. Learn more on our return policy page.
If you have any questions or need assistance we have an awesome customer support team that would love to help you! Please call us! 1-800-459-5594 or email info@espressoparts.com
Cross-references:
| Part number | Manufacturer |
| 18161 | ASTORIA CMA |
| 18162 | ASTORIA CMA |
| 95.01176 | CARIMALI |
| 8324 | EGD |
| 3170016 | EPGC |
| 3173016 | EPGC |
| LF1120700 | EPGC |
| 08368500 | FUTURMAT-ARIETE |
| 08368500 | GAGGIA SPAGNA |
| 08368500 | ITALCREM |
| 08368500 | MAIRALI |
| 397442 | PARKER |
| 397443 | PARKER |
| 08368500 | VISACREM |
