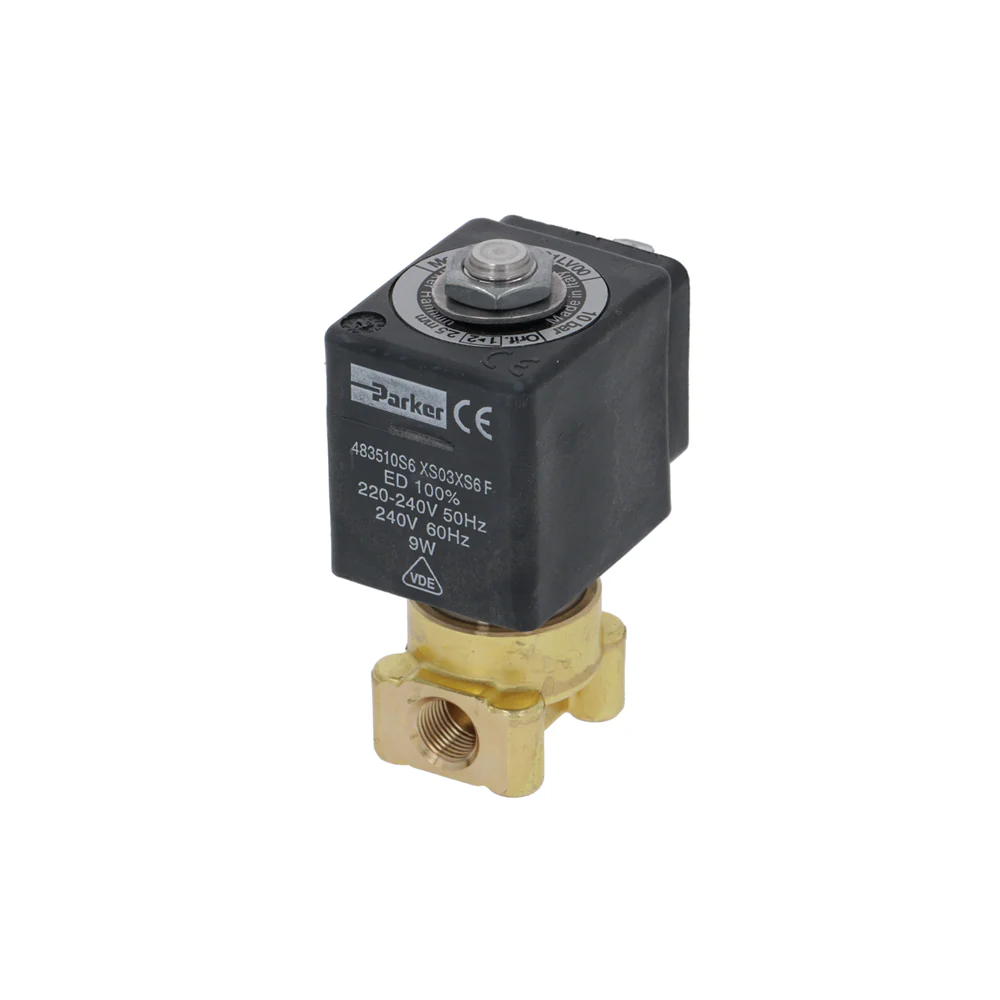

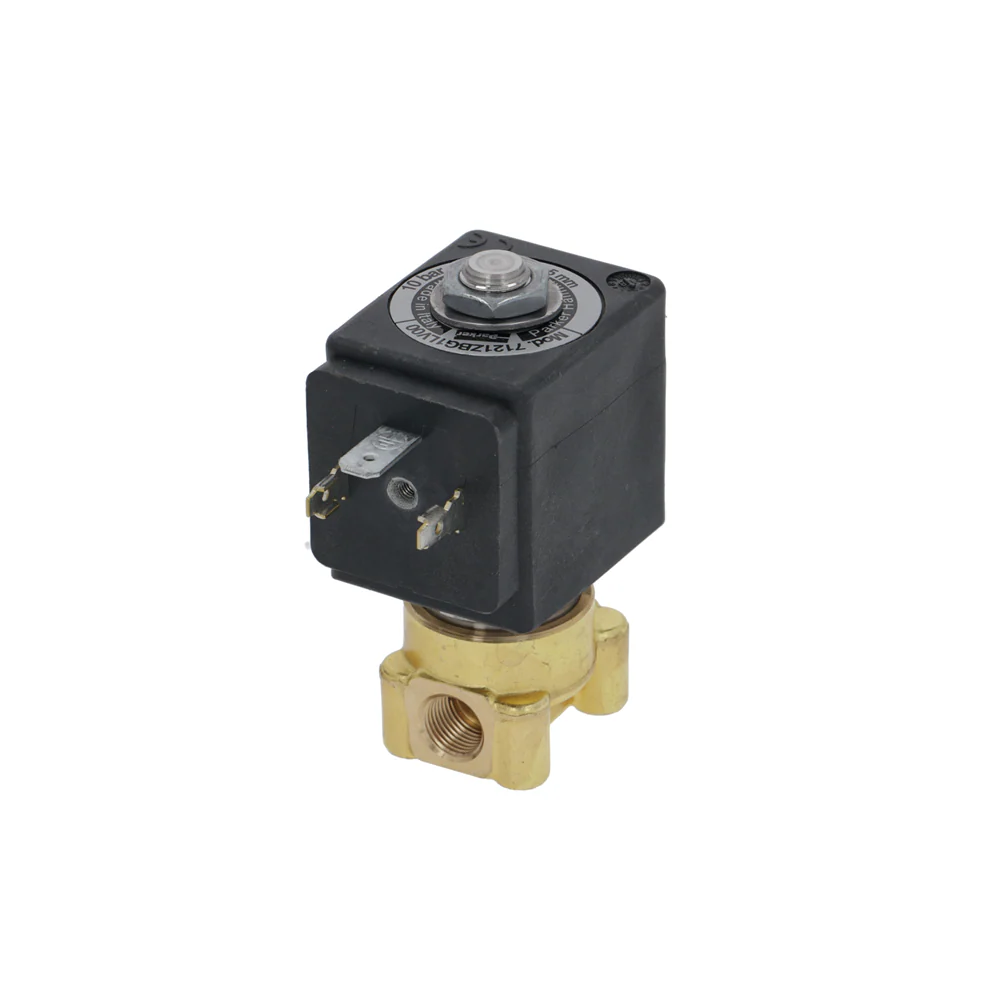

220V 50/60Hz 9W 1/8" x 1/8" Two-way Lucifer Solenoid

220V 50/60Hz 9W 1/8" x 1/8" Two-way Lucifer Solenoid

This assembly includes the Lucifer 220V coil with a 1/8" F x 1/8" F BSP valve body. Be sure to check for the water flow direction indicator arrow on the bottom of the valve body. Uses the standard size electrical connector.

fittings ø 1/8"FF - max 10 bar
VITON seal - orifice 2.5 mm
with coil 483510 9W 220/240V 50/60Hz
fluid temperature -40°C+140°C

Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.

Espresso Parts Guarantee:

We guarantee a full refund or replacement of all defective products at no additional cost to you. Most electrical items have specified limited warranties. If an electrical device fails to function due to manufacturers defect, Espresso Parts will repair or replace the device (TBD).*Important Note: All Special Order Items, Equipment, Electrical Items (scales, heating elements, switches, flowmeters, vibratory pumps, thermostats, etc.), Pump Heads, Solenoids, Custom Work and Books are NOT eligible for return. All sales are final on this merchandise. Learn more on our return policy page.

If you have any questions or need assistance we have an awesome customer support team that would love to help you! Please call us! 1-800-459-5594 or email info@espressoparts.com

$28.72

Original: $95.73

-70%
220V 50/60Hz 9W 1/8" x 1/8" Two-way Lucifer Solenoid—

$95.73

$28.72

Product Information

Shipping & Returns

Description

This assembly includes the Lucifer 220V coil with a 1/8" F x 1/8" F BSP valve body. Be sure to check for the water flow direction indicator arrow on the bottom of the valve body. Uses the standard size electrical connector.

fittings ø 1/8"FF - max 10 bar
VITON seal - orifice 2.5 mm
with coil 483510 9W 220/240V 50/60Hz
fluid temperature -40°C+140°C

Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.
