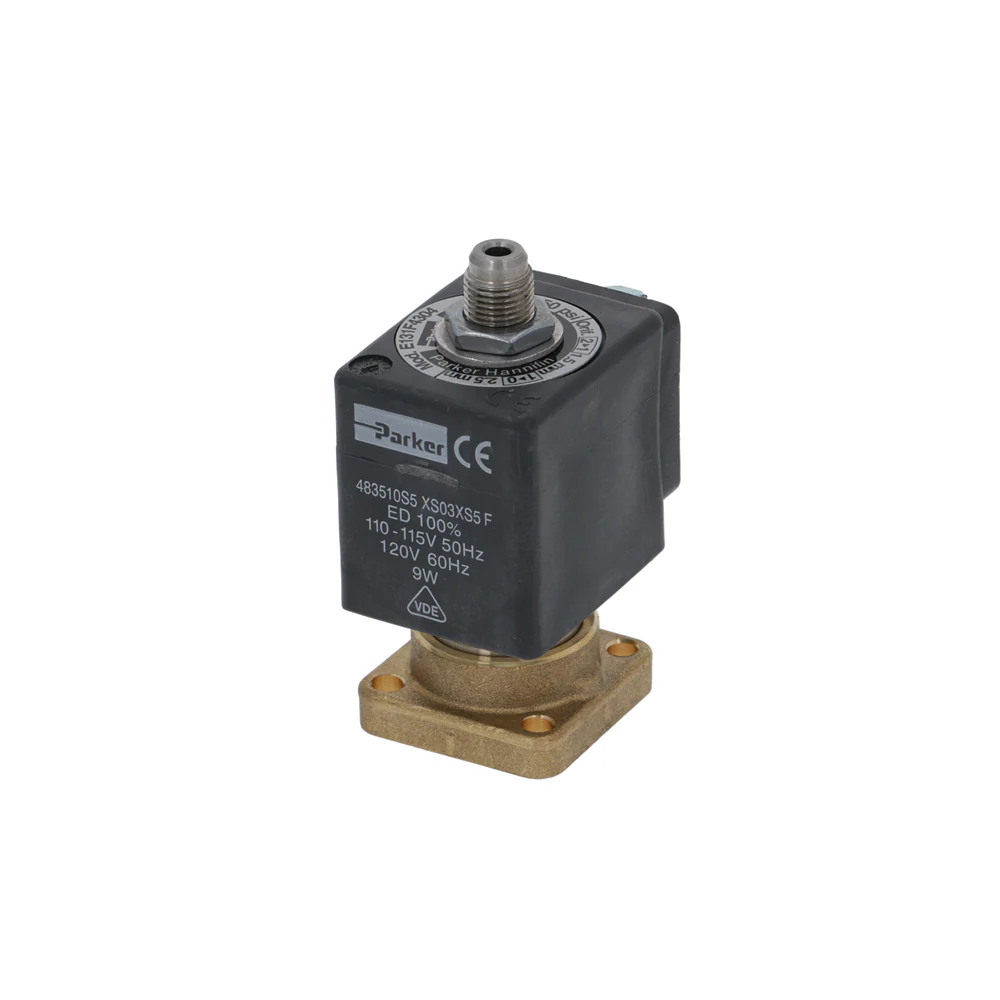

110V 50/60Hz 9W Three-way Lucifer Solenoid
110-115V 50Hz ~ 120V 60Hz. Uses W_635 Connector.
E131F4304 - outlet ø 1/8" conical - max 10 bar
RUBY seal - orifice ø 1.5 mm
with coil 483510S5 9W 110/115/120V 50/60Hz
fluid temperature -40°C+140°C
Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
110-115V 50Hz ~ 120V 60Hz. Uses W_635 Connector.
E131F4304 - outlet ø 1/8" conical - max 10 bar
RUBY seal - orifice ø 1.5 mm
with coil 483510S5 9W 110/115/120V 50/60Hz
fluid temperature -40°C+140°C
Parker-Hannifin bought out the Lucifer division, so all Lucifer coils now say Parker on them, but they still use the original Lucifer model/part numbers (they also left a raised embossed printing that says Lucifer on the top of some coils) and are only compatible with the Lucifer version valves.
